Sentinel® 1 HP Rotary Vane Pond Aeration System
Categories:
Aeration Systems -
Ponds & Lakes -
Commercial & Industrial Supplies -
Aeration -
Aeration -
Complete Aeration Systems -
Product Code: Sentinel® Rotary Vane Aeration
Availability: In Stock
Free shipping in the USA.
Product Code: Sentinel® Rotary Vane Aeration
Availability: In Stock
Free shipping in the USA.
Price: $5,950.00
Free USA Shipping
Sentinel® rotary vane aeration systems are for large lakes and ponds where multiple aeration stations are required to provide adequate circulation and mixing in large bodies of water. Sentinel® systens are available with a single 1 HP rotary vane compressor in a large lockable steel cabinet. The systems come with 6 dual-disc weighted diffuser assemblies and the compressors are mounted in a ventilated cabiet that includes valve-manifold controls and power outlet with CGFI protection. Cabinet has sound-reduction insulation installed. Includes 800' of 1/2" weighted airhose.
Made in the USA.
Standard Features:
- Rotary vane air compressors
- Steel lockable cabinet with ventilation fan and electrical box installed
- Sound-reducing insulation included in cabinet
- Weighted diffuser assemblies
- Includes 800' of 1/2" weighted airhose
- Valved manifold rails mounted in cabinet
- Pressure Gauge
- Relief Valve
- Instructions
- Two-Year Warrannty

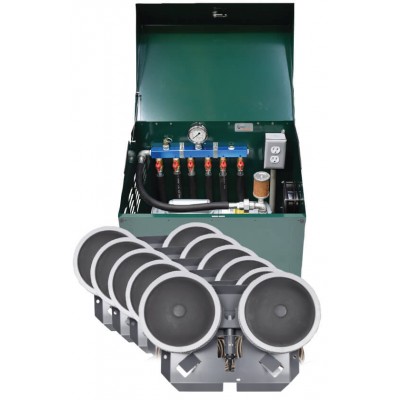

 Sentinel® 1 HP Rotary Vane Aeration System Includes 6 diffuser assemblies and 800' weighted hose Features a 1 HP rotary vane compressor, 13.5 cfm, 14 amps at 115 volts (7 amps at 230 volts) Cabinet is 16 gauge galvanized steel with powder coat finish. Cabinet dimensions 16.5" W x 22" L x 19" T Cabinet is mounted on equipment pad. Sound-reducing insulation included in cabinet The kit includes compressor, outlet assembly, pressure gauge and pressure relief valve. The six dual-disc weighted diffuser assemblies are included. Also included is the lockable steel cabinet with cooling fan and electrical outlet installed. Equipped with 6′ power cord pre-wired to plug cabinet system into GFCI protected outlet. 800' weighted tubing is included. Sound-proofing insulation can also be added if the cabinet is going to be placed in an area where any noise might be an issue. |
Picture of the 1 HP Rotary Vane Compressor
Replacement vanes are available
