Sentinel® Commercial Lake & Pond Aeration Systems

Sentinel® Commercial Lake & Pond Aeration Systems
Categories: Aeration SystemsLarge Ponds & LakesCommercial & Industrial SuppliesAeration: The Key To SuccessAerationComplete Aeration Systems
Product Code: Sentinel Large Pond & Lake Aeration System
Availability: In Stock

Free shipping in the USA.
Price: $3,675.00

Available Options


* Aeration System:





* Voltage:



Qty:
   - OR -

Sentinel® Commercial aeration systems are for large lakes and ponds where multiple aeration stations are required to provide adequate circulation and mixing in large bodies of water.

Sentinel® Commercial are availablle with either rotary vane air compressors or rocking-piston air compressors. The rotary vane systems provide more airflow and less pressure and so should be used in ponds and lakes no deeper than 16' deep; typical operation is in depths from 6'  The piston air-compressor systems can be used in deeper ponds anywhere from 15' to 50' deep.

All cabinets are mounted on an equipment pad and include free noise-reduction insulation kit for reduced noise at no additional cost.
Airline is sold separately.
Free USA Shipping

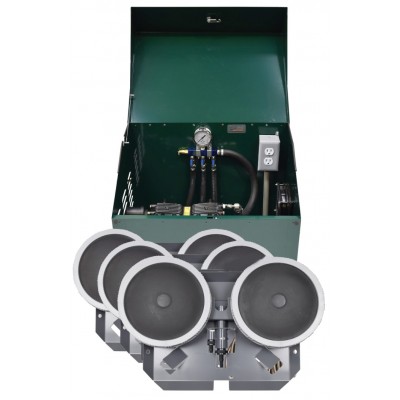

Deep Water Aeration - Piston Sentinel®
Aerates 3 to 12 Acres - 16 to 50 Feet Deep
Model:SC2P50 & SC2P75

Includes:


Steel Cabinet on Equipment Pad
Two piston air compressor
Four or Eight Diffuser Assemblies
Four or Eight Valved Manifold Rail
Ventilation Fan
Sound-Proofing Insulation Kit
Cabinet Mounted to Equipment Pad
Electrical Box Installed
Pressure Gauges
Relief Valves
Key for Cabinet
Instructions


Airline is sold separately.

*Maximum diffuser depth is 50' for the piston compressor systems. Airflow will be reduced as pressure (depth) increase.
**Each diffuser station has 2 x 9" EPDM discs on weighted-base. Add gravel to hollow base for ballast.
***Cabinet is steel (powder coated) and includes insulated sound-reduction kit, valve manifolds, pressure gauges and relief valves. Ventilation fans and eletrical box inside cabinet with a conduit running out the bottom for your electrical hook-up. Comes bolted on a gray equipment pad

High-Volume Aeration - Rotary Vane Sentinel®
Aerates 4 to 12 Acres - 8 to 16 Feet Deep

Model: SC2RV75 & SCRV100


Includes:

Steel Cabinet on Equipment Pad
Two rotary vane air compressor
Eight or Twelve Diffuser Assemblies
Eight or Twelve Valved Manifold Rail
Ventilation Fan
Sound-Proofing Insulation Kit
Electrical Box Installed
Pressure Gauges
Cabinet Mounted to Equipment Pad
Relief Valves
Key for Cabinet
Instructions

Airline is sold separately.


*Maximum diffuser depth is 16' for the rotary vane systems. Airflow will be reduced as pressure (depth) increase.
**Each diffuser station has 2 x 9" EPDM discs on weighted-base. Add gravel to hollow base for ballast.
***Cabinet is steel (powder coated) and includes insulated sound-reduction kit, valve manifolds, pressure gauges and relief valves. Ventilation fans and eletrical box inside cabinet with a conduit running out the bottom for your electrical hook-up. Comes bolted on a gray equipment pad

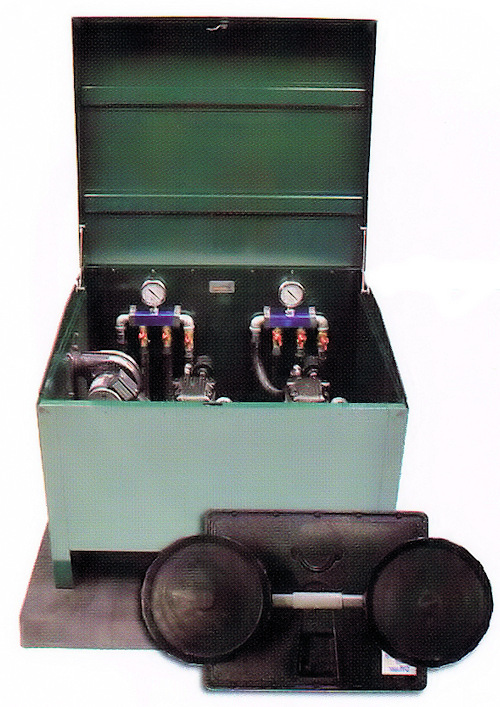

Piston Sentinel® Commercial System
*Maximum diffuser depth is 50' for the piston compressor systems. Airflow will be reduced as pressure (depth) increase.
**Each diffuser station has 2 x 9" EPDM discs on weighted-base. Add gravel to hollow base for ballast.
***Cabinet is steel (powder coated) and includes insulated sound-reduction kit, valve manifolds, pressure gauges and relief valves. Ventilation fans and eletrical box inside cabinet with a conduit running out the bottom for your electrical hook-up. Comes bolted on a gray equipment pad
Model Compressors Power Consumption
(per compressor)
Diffuser Stations** Total Available Airflow Cabinet***
PR-SC2P50 2 x 1/2 HP
Stratus® Rocking Piston
4.0 amps - 115 v
2.0 amps - 230 v
4  Stations
8 x 9" discs total
9 CFM Yes
PR-SC2P75 2 x 3/4 HP
Stratus® Rocking Piston
5.7 amps - 115 v
2.9 amps - 230 v
8 Stations
16 x 9" discs total
15 CFM Yes
Rotary Vane Sentinel® Commercial System
*Maximum diffuser depth is 16' for the rotary vane systems. Airflow will be reduced as pressure (depth) increase.
**Each diffuser station has 2 x 9" EPDM discs on weighted-base. Add gravel to hollow base for ballast.
***Cabinet is steel (powder coated) and includes insulated sound-reduction kit, valve manifolds, pressure gauges and relief valves. Ventilation fans and eletrical box inside cabinet with a conduit running out the bottom for your electrical hook-up. Comes bolted on a gray equipment pad

Model Compressors Power Consumption
(per compressor)
Diffuser Stations Total Available Airflow Cabinet***
PR-SC2RV75 2 X 3/4 HP
Gast® Rotary Vane
12.0 amps - 115 v
6.0 amps - 230 v
8 Stations
16 x 9" discs total
20 CFM Yes
PR-SC2RV100 2 X 1 HP
Gast® Rotary Vane
14.0 amps - 115 v
7.0 amps - 230 v
12 Stations
24 x 9" discs total
26 CFM Yes


Airline is sold separately. Use 1/2" or 5/8" weighted airline in ponds and lakes. On shore use heavy-duty poly-pipe (1/2" or 5/8") suitable for burial.
Replacement rotary vanes, piston-rebuild kits, air filters and diffuser discs are all available as replacement parts.
1 Year Limited Warranty on Compressor (sacrificial vanes and piston seals excluded as excessive wear due to improper depth placement of diffuser can cause premature wear)
5 Year Limited Warranty on Cabinet & Diffusers.


Free USA Motor Freight Shipping
