Sentinel® 2 HP Rotary Vane Pond Aeration System
Categories:
Aeration Systems -
Ponds & Lakes -
Commercial & Industrial Supplies -
Aeration -
Aeration -
Complete Aeration Systems -
Product Code: Sentinel® 2 HP Rotary Vane Aeration
Availability: In Stock
Free shipping in the USA.
Product Code: Sentinel® 2 HP Rotary Vane Aeration
Availability: In Stock
Free shipping in the USA.
Price: $8,595.00
Free USA Shipping
Sentinel® rotary vane aeration systems are for large lakes and ponds where multiple aeration stations are required to provide adequate circulation and mixing in large bodies of water. The 2HP Sentinel® contains two 1 HP rotary vane compressors in a large lockable steel cabinet. The system comes with 12 dual-disc weighted diffuser assemblies and the compressors are mounted in a ventilated cabiet that includes valve-manifold controls and power outlet with CGFI protection. Sound-reducing insulation included in cabinet. Made in the USA.
Standard Features:
- Rotary vane air compressors
- Steel lockable cabinet with ventilation fan and electrical box installed
- Sound-reducing insulation included in cabinet
- Weighted diffuser assemblies
- Valved manifold rails
- Pressure Gauge
- Relief Valve
- Instructions
- Two-Year Warrannty
|

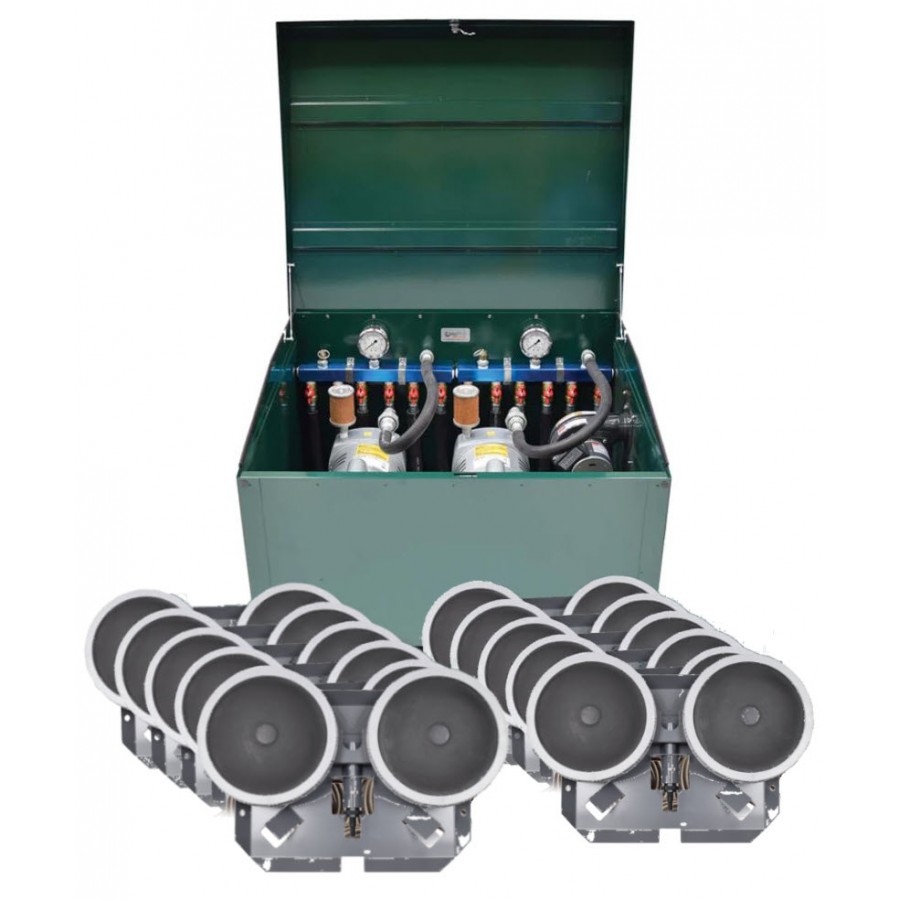

Sentinel® 2 HP Rotary Vane Aeration System  Includes 12 diffuser assembliesFeatures two 1 HP rotary vane compressors, 27 cfm total (13.5 CFM per compressor), 28 amps total at 115v (14 amps per compressor) and 14 amps total at 230 volts (7 amps per compressor) Cabinet is 16 gauge galvanized steel with powder coat finish Cabinet dimensions 24" W x 28" L x 20" T Cabinet is mounted on equipment pad. Sound-reducing insulation included in cabinet The kit includes compressors, outlet assembly, pressure gauges and pressure relief valves. The twelve dual-disc weighted diffuser assemblies are included. Also included is the lockable steel cabinet with cooling fan and electrical outlet installed. Equipped with 6′ power cord pre-wired to plug cabinet system into GFCI protected outlet. Weighted tubing is an available option. Sound-proofing insulation can also be added if the cabinet is going to be placed in an area where any noise might be an issue. |
Picture of the 1 HP Rotary Vane Compressor(s) Installed in Cabinets
Replacement vanes are available
