Stratus® Rotary Vane Compressors
Categories:
Air Pumps & Compressors -
Commercial & Industrial Supplies -
Aeration -
Product Code: Stratus® Rotary Vane Compressors
Availability: In Stock
Free shipping in the USA.
Product Code: Stratus® Rotary Vane Compressors
Availability: In Stock
Free shipping in the USA.
Price: $1,080.00
Free Shipping in the USA
Rotary Vane air compressors and vacuum pumps are used in thousands of applications worldwide. Available in oilless, lubricated, motor-mounted, and separate drive styles, they offer a wide choice of capabilities.

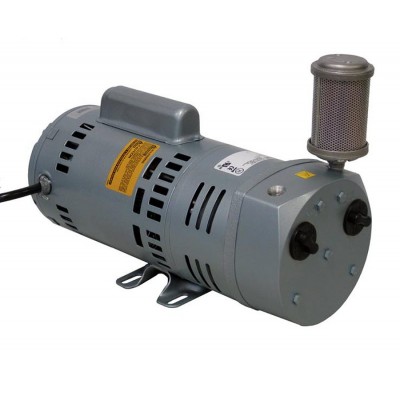

Stratus® Rotary Vane Compressors
- Long lasting, continuous duty compressors offer less depth capabilities than the diaphragm or rocking piston compressors but produce considerably more air
- Medium pressure, oil free compressors are excellent for pond and lake aeration and de-icing
- Carbon vanes self adjust to maintain maximum efficiency and are easily replaced when worn out
- All models have an 18' maximum operating depth, they come with air filter and 7' power cord
- Air outlet assemblies are available with 2, 3, 4 or 5 valves, allowing one pump to supply up to 5 air manifolds
- Please be sure to specify voltage desired on these compressors, all units shipped 115v unless otherwise specified
1/4 HP Stratus® Rotary Vane Compressor - 4.5 CFM
PR-RV33
Voltage: 115/230v
Amps: 5.0/2.5 amps
Max PSI: 10 psi
Maximum Depth: 18'
3/4 HP Stratus® Rotary Vane Compressor - 10 CFM
PR-RV75
Voltage: 115/230v
Amps: 12/6 amps
Max PSI: 10 psi
Maximum Depth: 18'
1 HP Stratus® Rotary Vane Compressor - 13.5 CFM
PR-RV100
Voltage: 115/230v
Amps: 14/7 amps
Max PSI: 10 psi
Maximum Depth: 18'
Compressors have a thermal overload protection which protects the motor windings from damage should the pump become stalled during operation.
| CFM Air Flow @ Water Depth | |||||||||
| Part # | Max Depth | HP | Voltage |
Running Amps 115v / 230 v |
0' | 6' | 12' | 18' | Ship Wt. |
| 1/4 HP | 18' | 1/4 | 115 / 230 | 5 / 2.5 | 4.5 | 4.3 | 4.0 | 3.6 | 34 lbs. |
| 3/4 HP | 18' | 3/4 | 115 / 230 | 12 / 6 | 10.0 | 9.6 | 9.2 | 9.0 | 53 lbs. |
| 1 HP | 18' | 1 | 115 / 230 | 14 / 7 | 13.5 | 12.4 | 11.7 | 10.4 | 58 lbs. |
