Pond Aeration Systems - Sentinel® Complete System

Pond Aeration Systems - Sentinel® Complete System
Categories: Aeration SystemsLarge Ponds & LakesCommercial & Industrial SuppliesAeration: The Key To SuccessAerationComplete Aeration Systems
Product Code: Sentinel Large Pond & Lake Aeration System
Availability: In Stock

Free shipping in the USA.
Price: $2,100.00

Available Options


* Aeration System:



* Voltage:



Qty:
   - OR -

Sentinel® Commercial aeration systems are for large lakes and ponds where multiple aeration stations are required to provide adequate circulation and mixing in large bodies of water.

Sentinel® Commercial are availablle with rocking-piston air compressors.  The piston air-compressor systems can be used in deeper ponds anywhere from 15' to 35' deep.

All cabinets are mounted on an equipment pad and include free noise-reduction insulation kit for reduced noise at no additional cost.
Airline is included.
Free USA Shipping

Deep Water Aeration Systems - Sentinel®
Aerates up to 4 Acres
Model:1/2 HP & 3/4 HP

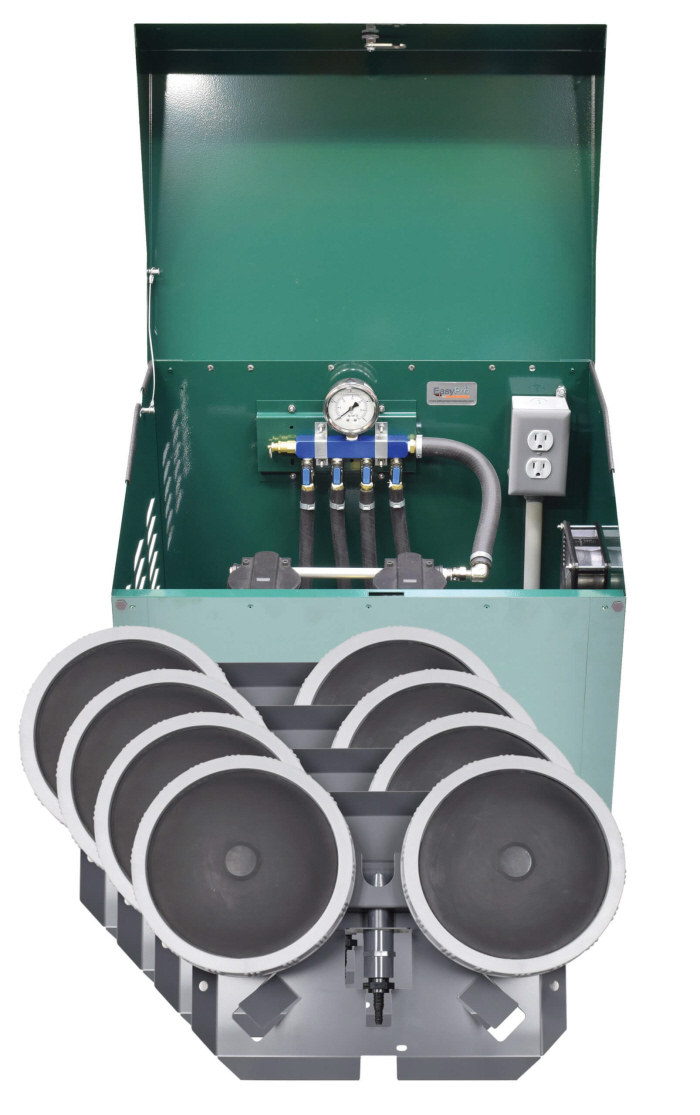

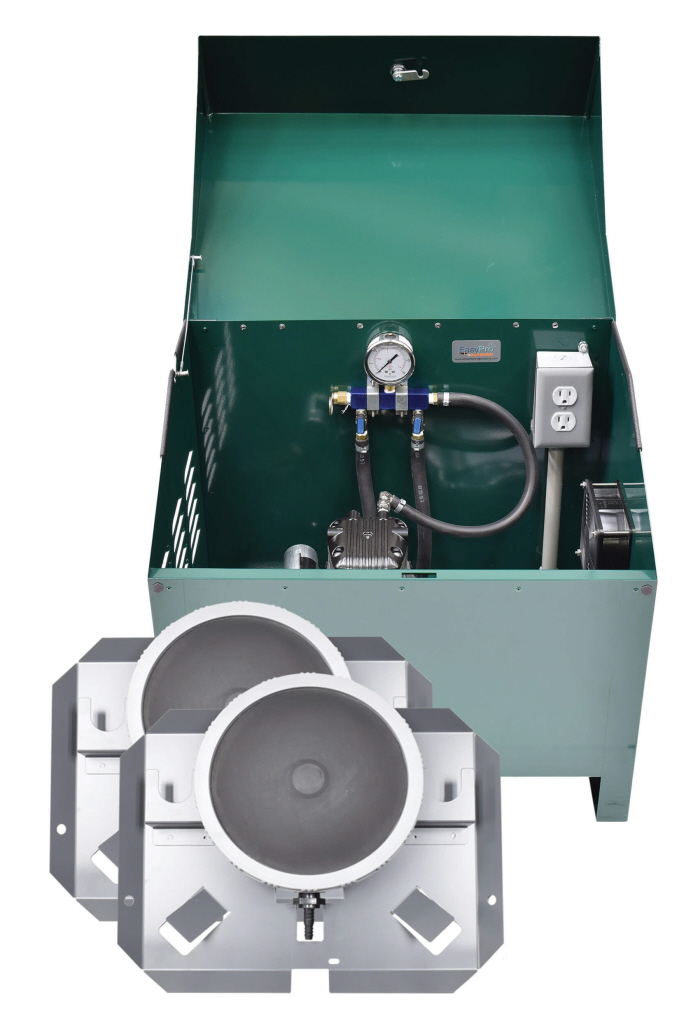

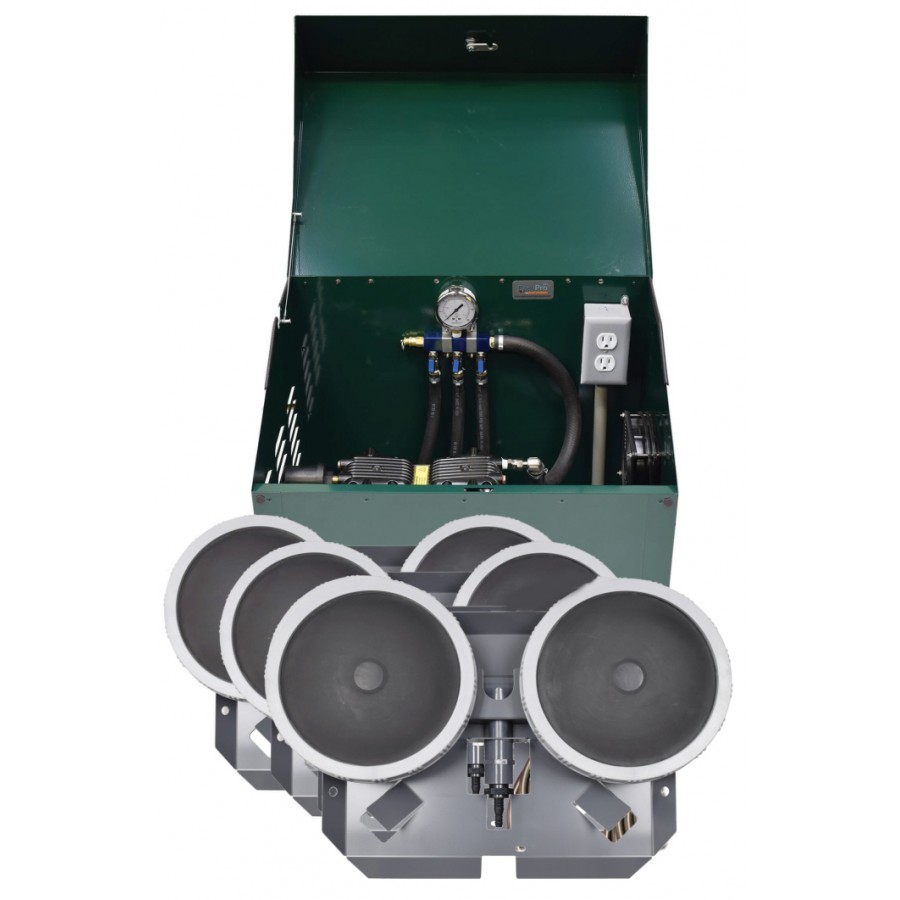

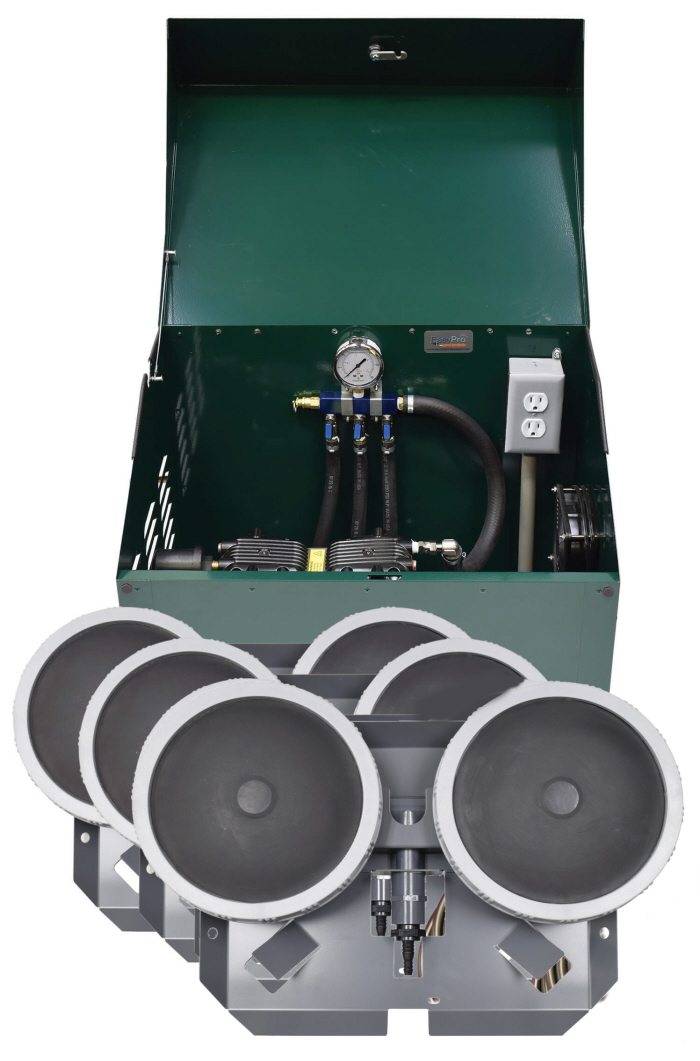

Each System Includes:


Steel Cabinet on Equipment Pad
One Piston air compressor (1/2 HP or 3/4 HP)
Two or Four Diffuser Assemblies
Two or Four Valved Manifold Rail
Ventilation Fan
Sound-Proofing Insulation Kit
Cabinet Mounted to Equipment Pad
Electrical Box Installed
Pressure Gauges
Relief Valves
Key for Cabinet
Instructions


Weighted airline is included! 200' of weighted airline in the smaller system and 600' of weighted airline in the larger system.

*Maximum diffuser depth is 50' for the piston compressor systems. Airflow will be reduced as pressure (depth) increase.
**Each diffuser station has 2 x 9" EPDM discs on weighted-base. Add gravel to hollow base for ballast.
***Cabinet is steel (powder coated) and includes insulated sound-reduction kit, valve manifolds, pressure gauges and relief valves. Ventilation fans and eletrical box inside cabinet with a conduit running out the bottom for your electrical hook-up. Comes bolted on a gray equipment pad




Piston Sentinel® Commercial System
*Maximum diffuser depth is 50' for the piston compressor systems. Airflow will be reduced as pressure (depth) increase.
**Each diffuser station has 2 x 9" EPDM discs on weighted-base. Add gravel to hollow base for ballast.
***Cabinet is steel (powder coated) and includes insulated sound-reduction kit, valve manifolds, pressure gauges and relief valves. Ventilation fans and eletrical box inside cabinet with a conduit running out the bottom for your electrical hook-up. Comes bolted on a gray equipment pad
Model Compressors Power Consumption
(per compressor)
Diffuser Stations** Total Available Airflow Cabinet*** 3/8" Weighted Airline Included
PR-SENT50 1 x 1/2 HP
Stratus® Rocking Piston
4.0 amps - 115 v
2.0 amps - 230 v
2  Stations
4 x 9" discs total
4.5 CFM Yes 200' (2 x 100
PR-SENT75 1 x 3/4 HP
Stratus® Rocking Piston
5.7 amps - 115 v
2.9 amps - 230 v
4 Stations
8 x 9" discs total
6.5 CFM Yes 600'


Airline is sold separately. Use 3/8" or 1/2"" weighted airline in ponds and lakes. On shore use heavy-duty poly-pipe (1/2" or 5/8") suitable for burial.
Replacement rotary vanes, piston-rebuild kits, air filters and diffuser discs are all available as replacement parts.
1 Year Limited Warranty on Compressor (sacrificial vanes and piston seals excluded as excessive wear due to improper depth placement of diffuser can cause premature wear)
5 Year Limited Warranty on Cabinet & Diffusers.


Free USA Motor Freight Shipping
