Solar Direct Drive 12 Volt Aeration Systems

Solar Direct Drive 12 Volt Aeration Systems
Solar Direct Drive 12 Volt Aeration Systems Solar Direct Drive 12 Volt Aeration Systems
Price: $2,595.00

Available Options


* Model:






Qty:
   - OR -

These high-quality solar-direct systems are designed for ponds up to two acres in size. The DC air compressor can handle depths up to 15' and will provide quality aeration during daylight hours when the sun is shining. These systems have no batteries making them a good choice where aeration is essential but the budget doesn't allow for large battery back-up systems.

These plug and play solar systems come complete with high efficiency solar panels, energy efficient compressor, high volume cooling fans, fully adjustable manifold housed in weatherproof ventilated cabinet.

Diffusers are micro-bubble technology, self-cleaning, non-clogging membrane diffusers emit millions of tiny bubbles that increase dissolved oxygen levels while eliminating stratification, improving water quality and clarity.

The systems are available as solar direct systems with 12 volt direct current pumps or as a hybrid solar/ac system that will operate with solar power when possible but will automatically switch to AC power when there is not enough sunlight to operate the DC pump.

Free Shipping Within The USA

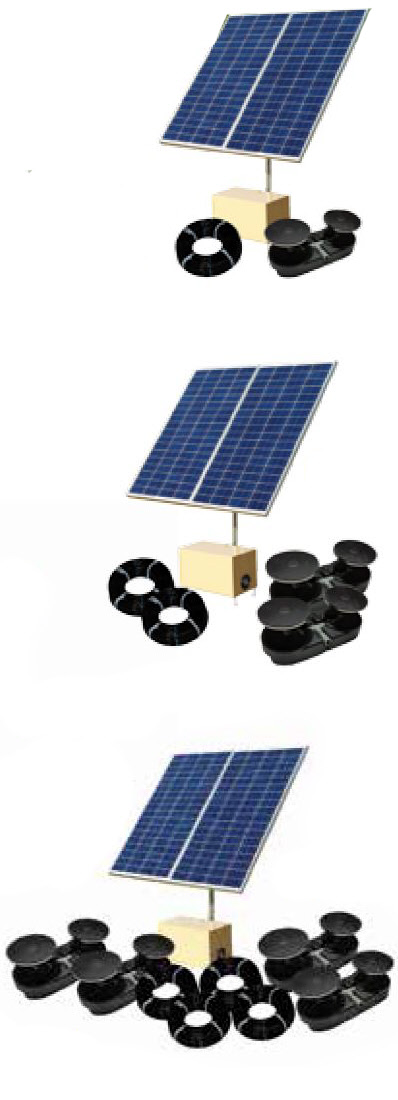

Model # DD2-351 DD3-352 DD5-354 DD7-347-HYBRID DD9-374-HYBRID
Recommended Pond Size 1/4 - 3/4 acre  up to 1.5 acres up to 3 acres up to 1.5 acres up to 2 acres
Max Depth 15' 15' 15' 15' 15'
Number of Componants Included With Each System
Air Compressor/Pumps:
DC Pump: 12 volt dc 2.8 CFM - 7 PSI
AC Pump: 740 watts ac 3.3 CFM - 8 PSI
1 DC Pump 1 DC Pump 2 DC Pumps 1 DC + 1 AC Pump 1 DC + 1 AC Pump
Powder Coated Steel Cabinet 1 1 1 1 1
Cooling Fans with Guards 1 1 2 2 2
Adjustable air controlled valve outlets 1 2 4 1 2
Polycrystalline Solar Panels 2 2 2 2 2
Alum frame with Adjustable Mount 1 1 1 1 1
Galvanized Mounting Pole 1 1 1 1 1
Pressure Relief Valve 1 1 2 2 2
Liquid Filled Pressue Gauge 1 1 2 1 1
Rolls of 100' of Weighted Airline 1 2 4 1 2
Double Disc Diffuser Assembly
2 x 9" EPDM Membrane Discs
1 2 4 1 2



Technical Specifications


Solar Panels & Mounting Hardware

  •  Polycrystalline 120W Solar Panels.
  •  Solar modules are designed specifically for use in OFF GRID applications.
  •  Pre-cut, pre-drilled mounting frames to connect 2 panels in parallel.
  •  High quality adjustable angle mounting bracket with powder coat finish.
  •  Includes quick cable disconnects to make assembly much easier.
  •  Includes a 5’ Galvanized steel mounting pole with instructions.


Tubing & Diffusers

  •  High quality weighted airline that sinks to the bottom of your pond.
  •  Low psi rubber membrane diffusers with stainless steel hardware.


12V DC Direct Drive Piston Compressors

  •  Outdoor Water Solutions DD DC solar compressor rated at 2.8 CFM.
  •  Aerates ponds up to 15’ deep with its vertical piston design.
  •  Hybrid systems include an AC 115 volt air pump that operates when solar system doesn't
  •

Aeration Cabinet

  •  Powder coated steel cabinet with secure locking system.
  •  Cabinet includes either 1 or 2 high efficiency DC fans.
  •  Mounting feet and a post mount kit included.
  •  Solar disconnect provided for safety purposes when working on the unit.
  • System includes a pressure gauge and high quality Pressure Relief Valve.

Unique Features:

Each single compressor system comes with 2 high efficiency solar panels that allow you to aerate for more hours each day.

Battery Free operation. We have eliminated the expense of rechargeable batteries and charge controllers by offering a direct drive (DD) aeration system. This reduces your cost along with the maintenance issues associated with a lot of extra components.

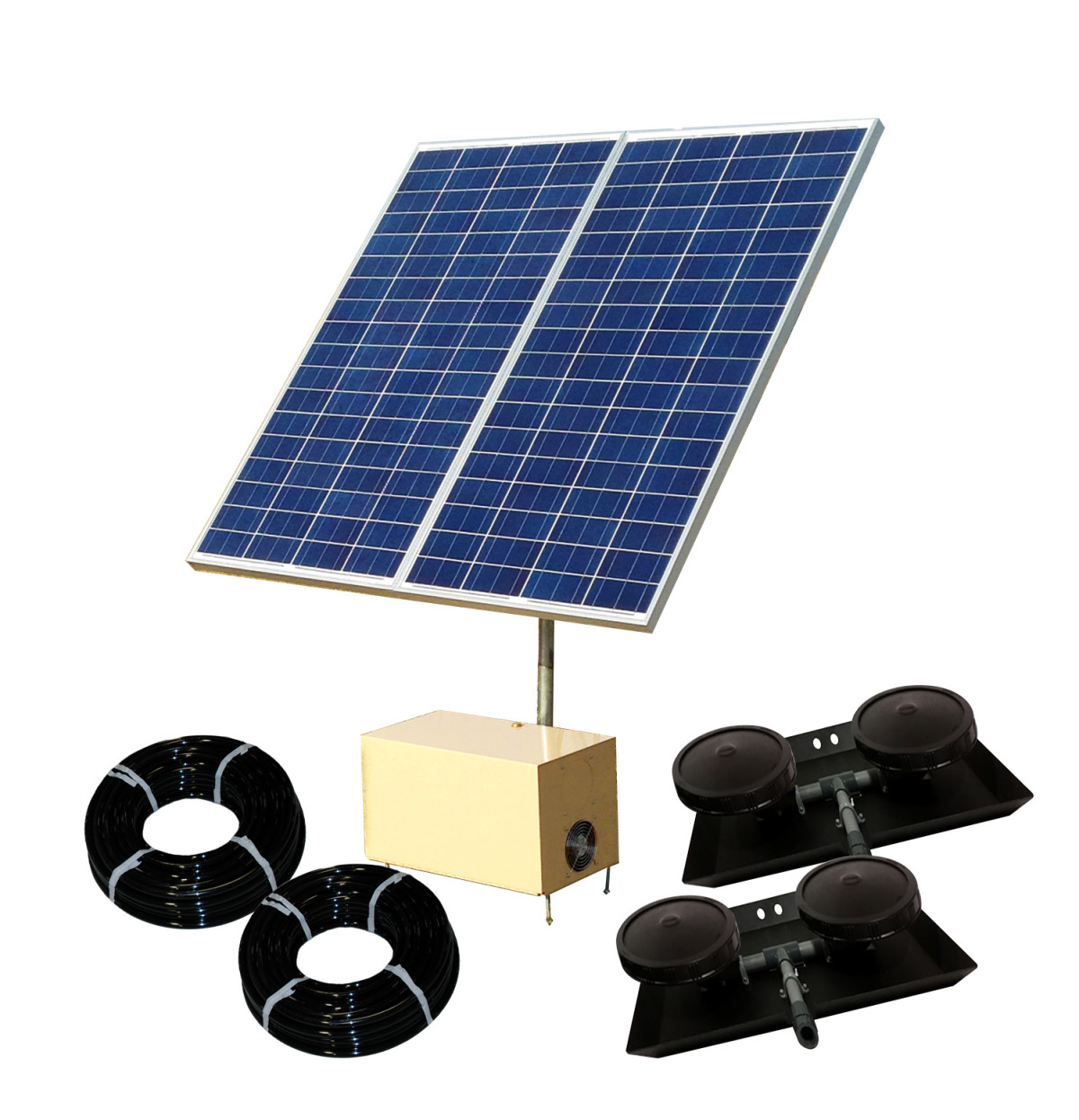

Each system includes 2 panels with aluminum mounting brackets and adjustable pole bracket with variable angle configuration, compressor(s), an OWS DD solar controller module, heavy duty steel cabinet with locks, mounting pole, solar power disconnect switch, cooling fans, pressure gauge and a pressure relief valve.

Each DD solar aerator can be operated by itself and totally independent of other aeration systems or it can be combined with a windmill aeration system to give you a longer operating time each day. It can also be combined with an electric aerator or windmill and electric aerator combo

System can also be combined with an Outdoor Water Solutions Pond Aerator Control Box that will turn on your electric aerators if the sun isn’t shining allowing you to use the power of the sun when it’s available to save you money.

Warranty: 5 years panels, airline and diffusers. 2 year warranty on all components and compressors.
