HeavySet® Weighted PVC Airline
Availability: In Stock
Free shipping in the USA.
Add to Compare
Free Shipping in the USA

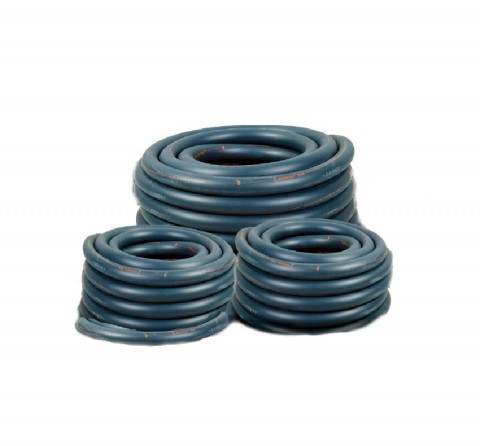

HeavySet® Weighted Airline stays on the bottom and requires no weights to keep it down. Makes installations easy and clean. Flexible, non-kinking PVC hose is easy to cut and uses standard 5/8" or 1/2" barbed connectors. Tubing is a dark blue color.
Available in 100' rolls in 3/8" and 5/8" and 50 rolls in 3/4" and 1" inner diameters.
Air Friction Loss of 5/8" Tubing
| CFM | Distance | PSI Friction Loss |
| 2 | 100' | 0.14 PSI |
| 3 | 100' | 0.29 PSI |
| 4 | 100' | 0.47 PSI |
| 5 | 100' | 0.70 PSI |
| 6 | 100' | 0.96 PSI |
| 8 | 100' | 1.58 PSI |
Do not try and force too much air through your tubing or you will experience back pressure on your air pump caused by the friction loss. Make sure your air compressor, air blower or air pump has the proper balance of available pressure for the CFM requirements of your system diffusers along with any friction loss over long distances with high airflows.
Contact us if you are unsure.
