Stratus® Gen 2 SRC Rocking Piston Air Compressors
Availability: In Stock
Free shipping in the USA.
Add to Compare
Free Shipping in the USA

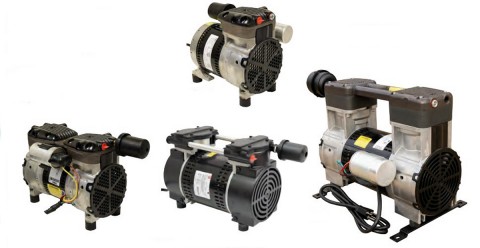

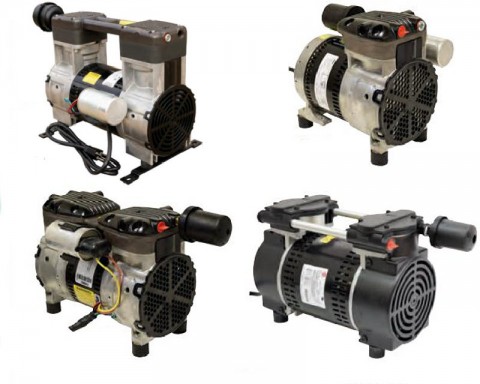

Stratus SRC series “Gen 2” rocking piston compressors are specifically designed for the demanding job of 24 hour operation. The oil-less design makes them ideal for pond aeration systems. Available in 1/4, 1/2, 3/4 and 2 hp models, the Stratus SRC series compressors are assembled in the USA.

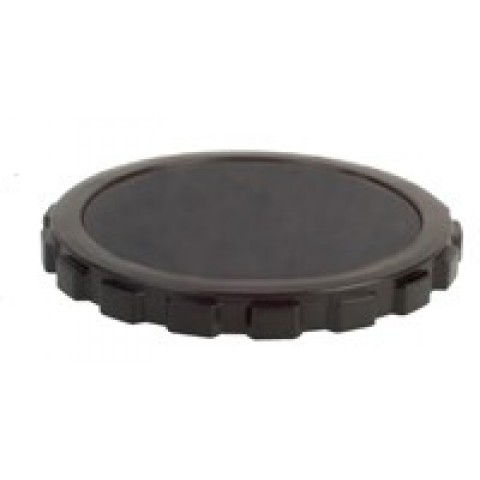

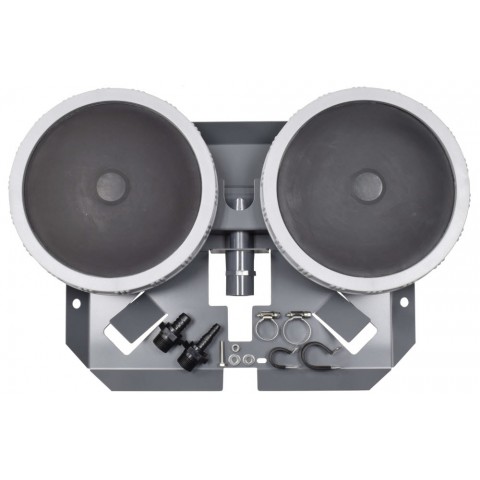

Stratus™ line of rocking piston air compressors, each one designed specifically for the demanding job of 24 hour operation. They are ideal for pond aeration systems. The oil-less design safely aerates ponds with no electricity in the water. The shore mounted compressor sends air through tubing to a bottom mounted diffuser for a safe, effective way to aerate ponds.
- Oil-less operation
- Permanently lubricated bearings
- Includes Stratus Smart-Start technology to start under load
- Superior quality, flexible cup material for increased reliability
- Die-cast body components for overall strength
- Single or double cylinder design
- Inlet/Outlet Size: 1/4 hp - 3/4 hp: 1/4" fpt
- Inlet/Outlet Size:2 hp: 3/8" fpt
- Maximum psi: 1/4 hp - 3/4 hp: max 30 psi
-
Maximum psi:2 hp: max 125 psi
4 Models Available
Units include: Air inlet filter, rubber feet, 5' power cord

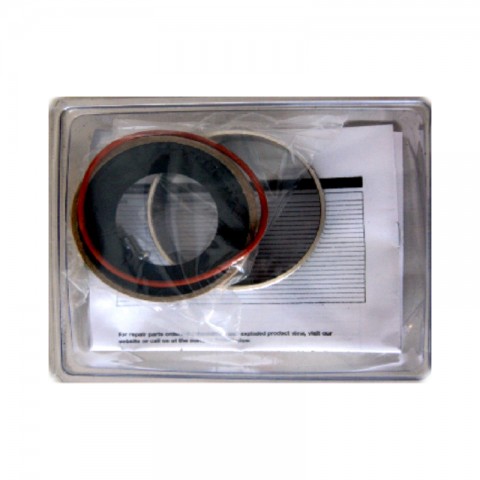

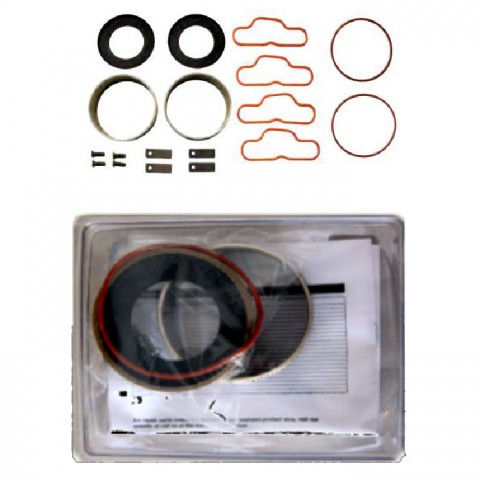

All Stratus SRC compressors operate under 70dB. (About the volume of normal conversation) And they're even quieter when mounted in an optional cabinet. 2 Year Warranty. Rebuild kits and accessories available for all models.
|
1/4 HP - 2.3 CFM  SRC25115v - 1.7 amps approx. Including compressor, vibration feet and filter/muffler, 6' cord SRC252 230v - 0.9 amps approx Including compressor, vibration feet and filter/muffler, 6' cord *Amps measured at 10' operating depth |
|
1/2 HP - 4.5 CFM  SRC50 115v - 3.6 amps approx. Including compressor, vibration feet and filter/muffler, 5' cord SRC502 230v - 1.8 amps approx. Including compressor, vibration feet and filter/muffler, 5' cord *Amps measured at 10' operating depth |
|
3/4 HP - 6.5 CFM  SRC75 115v - 4.5 amps approx. Including compressor, vibration feet and filter/muffler, 5' cord SRC752 230v - 2.3 amps approx. Including compressor, vibration feet and filter/muffler, 5' cord *Amps measured at 10' operating depth |
|
2 HP - 12 CFM
|
| Stratus Model | cfm Air Flow @ Water Depth of: | |||||
| 0' | 10' | 20' | 30' | 40' | 50' | |
| 1/4 HP | 2.3 | 2.2 | 2.0 | 1.9 | 1.8 | 1.7 |
| 1/2 HP | 4.5 | 4.3 | 4.2 | 4.0 | 3.8 | 3.6 |
| 3/4 HP | 6.5 | 6.0 | 5.5 | 5.2 | 5.0 | 4.7 |
| 2 HP | 12 | 11.7 | 11.4 | 11.2 | 10.8 | 10.5 |
Optional Valve Outlets with Pressure Relief Valve
Outlets have a 1/4" connector for the compressor and the outlets are 3/8" barbed connectors for use with 3/8" tubing.
Control knobs allow for adjusting of the airflow through each airline.
